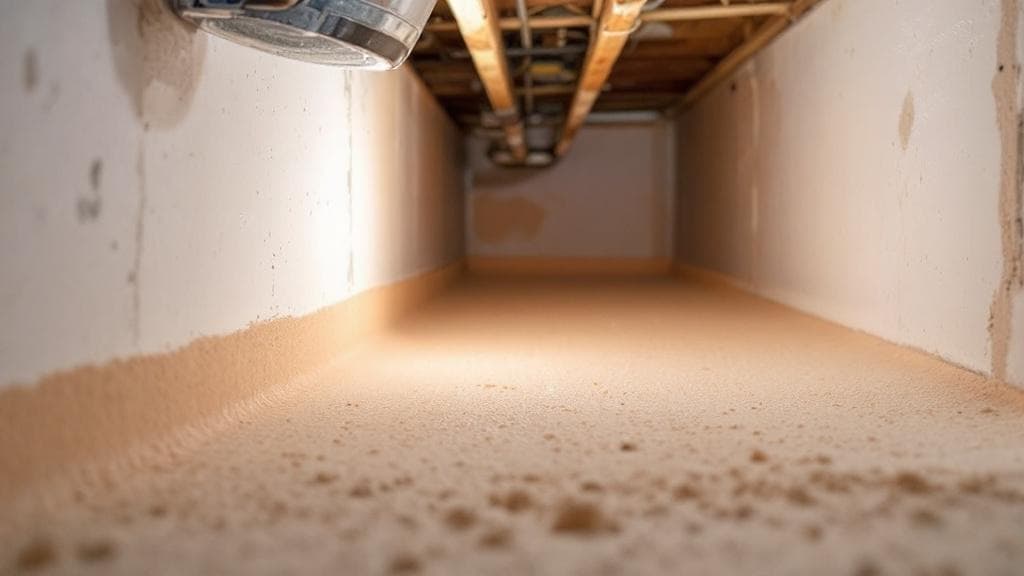

Crawl Space Spray Foam in Cincinnati

A spray foam crawl space in Cincinnati is really a closed-cell encapsulation: instead of stuffing fiberglass batts between the floor joists overhead (where they sag, fall, and feed mold), the crawl is sealed at its perimeter and brought inside the conditioned envelope. Closed-cell spray foam at 2 to 3 inches goes onto the crawl walls and the rim joist, where it air-seals every penetration and delivers an integrated vapor barrier at 2-plus inches of thickness. A heavy polyethylene liner covers the dirt or rock floor, runs up the foamed walls, and is sealed at the perimeter and seams so soil moisture cannot reach the framing.

The reason this assembly outperforms joist-cavity fiberglass in Cincinnati is air and vapor control. Fiberglass between the joists does nothing to stop humid air or soil gas from rising into the crawl and the floor above. Closed-cell at the walls treats the crawl as a small basement: sealed, dry, and thermally connected to the living space. Floors above stay warmer in winter, the musty crawl smell that migrates upward through the stack effect is cut off, and the sagging-batt problem disappears because there are no batts overhead to sag.

Closed-cell is the correct foam here precisely because open-cell does not function as a vapor retarder. Below grade in IECC Climate Zone 4A, an open-cell wall would let vapor migrate to a cold surface and condense, so the closed-cell spray foam in Cincinnati product family is the standard specification for crawl walls and rim. Every closed-cell product applied should carry a current ICC-ES product evaluation report; ask for the report number on your closeout package and verify it at the ICC-ES site.

Cincinnati hands a crawl space two distinct moisture drivers, and a closed-cell encapsulation answers both. First, humid summers: dew points sit in the high 60s to low 70s for weeks at a time, so warm humid outdoor air that leaks into a vented crawl condenses on the cooler framing and ductwork, wetting the wood and feeding mold. Second, freeze-thaw winters: repeated cycles above and below freezing move ground moisture and crack older perimeter seals, and a cold uninsulated crawl chills the floor above and the rim band. Traditional vented crawls make both problems worse by inviting outdoor air in year-round.

The fix is to stop venting the crawl to the outdoors and instead seal and condition it. That is where the building code comes in. Under IRC R408, an unvented (conditioned) crawl space must have a continuous Class I vapor retarder over the exposed earth, lapped and sealed at the seams and to the foundation wall, plus a conditioning provision such as a small dehumidifier or a supply-air feed from the home's HVAC. The closed-cell foam at the walls provides the air seal and integrated vapor barrier above 2 inches; the sealed liner satisfies the ground-cover requirement; the dehumidifier or supply air keeps the encapsulated crawl in the 45 to 55 percent relative-humidity range year-round.

Done correctly, the encapsulated crawl reads like a dry, tempered mini-basement: framing moisture content stays below 19 percent, humidity stays under 60 percent, and the floors above stop telegraphing cold and damp. A credentialed Cincinnati installer identifies and remediates any active water source (leaking foundation walls, failed gutter routing, plumbing leaks, cold-pipe condensation) before spraying, because foam encapsulates a moisture source rather than curing it.

A standalone closed-cell crawl-space job in Cincinnati typically runs $2,500 to $7,000, while a full encapsulation that bundles multiple trades runs higher. The variables that move the number, in roughly the order they matter:

Perimeter and square footage: closed-cell foam is priced by the board foot ($1.50 to $2.50 per board foot for closed-cell in Cincinnati), so a long foundation perimeter and taller crawl walls raise the foam count and the price.

Scope bundled in: mold remediation if the framing is already affected, a 20-mil sealed liner over the floor, and mechanical conditioning (a dedicated crawl dehumidifier versus a lower-cost supply-air feed) each add cost. The IRC R408 vapor-retarder and conditioning requirements mean a code-compliant conditioned crawl is rarely foam-only.

Access and substrate: tight crawl clearances, interior obstructions, and a wet or contaminated existing vapor barrier that has to be removed all add labor.

Confirm the exact product and as-built R-value against the manufacturer-stamped product data sheet and the ICC-ES evaluation report on your closeout package. For a closed-cell rim band specifically, the smaller rim joist foam scope is often the highest-ROI place to start if the full encapsulation is not in this year's budget.
